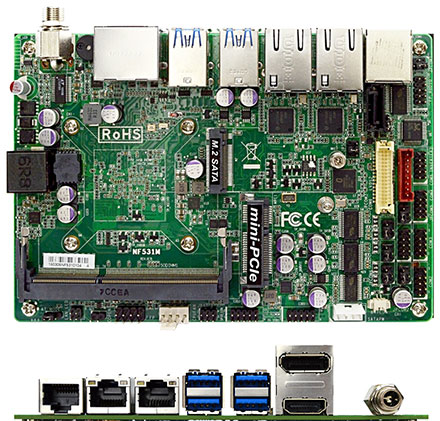

Jetway JNF531R-3160 (Intel Braswell)

Jetway JNF531R-3160 (Intel Braswell)
  • JNF531M-3160

  • Intel® Braswell Processor
  • 1 * DDR3L 1600MHz SODIMM, up to 8GB
  • Support HDMI, Display Port, LVDS Triple Independent Displays
  • 2 * Intel i211AT GbE
  • Integrated Realtek ALC662VD Audio CODEC with 6-CH
  • 1 * Serial ATAIII (6Gb/s)
  • 1 * External RS232(RJ45 Type) & 5 * Internal COM (COM2 support RS232/422/485)
  • 4 * External USB3.0 & 2 * Internal USB1.1/2.0
  • 1 * half size Mini PCIe, 1 * M.2 (M-key, 2242)
  • +9V~+36V Lockable DC-in Jack
  • 3.5” SBC Form Factor (148mm * 102mm)


Share

298.00 EUR
incl. 19% VAT, plus shipping
Available in 4 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (mSATA):

SSD (M.2 NVME):

Build/Install:
 Form Factor
Dimensions – 3.5” SBC ( 148X102 mm )
 Processor System
CPU – Intel® Braswell N3160, 1.60Ghz
Core Number – 4
Max Speed – 2.24GHz
L2 Cache – 2M
Chipset – SoC
BIOS – AMI 64Mb Flash ROM
 Expansion Slot
PCI – 0
Mini-Pcle – 1 (half size)
mSATA – 0
 Memory
Technology – 1 * DDR3L 1600MHz SODIMM
Max. – 8GB
Socket – 1 * SO-DIMM
 Graphics
Controller – Intel® HD Graphics
VRAM – Shared Memory
VGA – 0
LVDS – 1 (24-bits Dual Channel)
HDMI – 1 (Max. Resolution: 3840 * 2160@30Hz,2560 * 1600@60Hz)
Display Port – 1 (Max. Resolution: 3840 * 2160@30Hz,2560 * 1600@60Hz)
MultiDisplay – Yes (Triple Independent Display)
 Ethernet
Ethernet – 10/100/1000 Mbps
Controller – Intel i211AT Gigabit LAN
Connector – 2 * RJ 45
 Audio
CODEC – HD Audio: Realtek ALC662VD
Channel – 6 Channel
 SATA
Max Data Transfer Rate – 1 * SATAIII (6.0Gb/s)
 Rear I/O
DisplayPort – 1
HDMI – 1
Ethernet – 2
USB – 4 * USB 3.0
Serial – 1 (RJ45 Type)
DC-input  – 1 (+9V~+36V Lockable)
 Internal Connector
USB – 2 * USB 2.0
LVDS / inverter – 1
Serial – 5 (4 * RS232, COM2 support RS232/422/485)
SATA  – 1 (SATAIII 6.0Gb/s)
mPCIe – 1 (half size)
M.2 – 1 (M-key, 2242 SATA interface)
GPIO – 1 (4in/4 out)
Chassis intrusion – 1
Audio Header – 1 (Line Out & MIC)
AT mode jumper  – 1
 Watchdog Timer
Output – From Super I/O to drag RESETCON#
Interval  – 256 segments, 0,1,2…255sec/min
 Power Requirements
Input PWR – 9V~+36V Lockable DC-in jack
Power On AT/ATX Supported
‐ AT : Directly PWR on as Power input ready
‐ ATX: Press Button to PWR on after Power input ready
Certifications
Certifications – CE, FCC, RoHS, REACH
 Environment
Temperature – Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C
