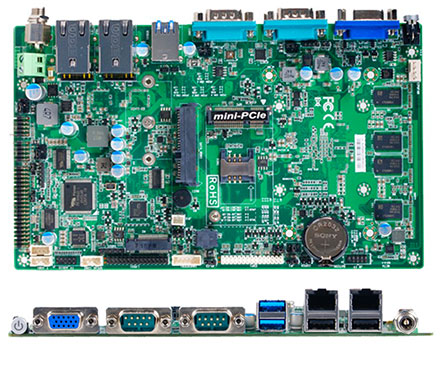

Jetway JNC7A-E1900-4G (Intel Bay Trail)

Jetway JNC7A-E1900-4G (Intel Bay Trail)

  • Intel® Celeron™ J1900 (2.0 GHz) quad-core processor
  • Onboard SAMSUNG 4G/1333MHz DDR3L Memory
  • Supports up to 2 Displays, LVDS,EDP, VGA
  • 1 * M.2 Socket (2242/2260/2280)
  • Dual Intel® Gigabit LAN
  • 4 * Serial Ports (COM1/2 RS232/422/485), 8-bit GPIO, 2 * USB 3.0 Ports, 6 * USB 2.0 Ports, Watchdog Timer
  • +9V ~ +28V DC-in or 4-pin Internal Power Connector
  • 5.25” Form Factor (120mm * 200mm)


Share

329.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
 Form Factor
Dimensions – 5.25” (120 * 200mm)
 Processor System
CPU – INTEL® Celeron™ J1900 (2.0 GHz) quad-core processor
Core Number – 4
Max Speed – 2.0GHz
L2 Cache – 2MB
Chipset – SOC
BIOS – AMI 64Mb Flash ROM
 Expansion Slot
PCI – 0
Mini-PCIe – 1 (full size)
M.2 – 1(2242/2260/2280)
SIM card holder – 1
 Memory
Technology – Onboard SAMSUNG 4G/1333MHz DDR3L Memory
Max. – 8GB
Socket – 0
 Graphics
Controller – (by CPU)
VRAM – Shared Memory
VGA – 1
LVDS – 1
eDP – 1
HDMI – 0
DVI‐D – 0
MultiDisplay – Yes (Dual Displays)
 Ethernet
Ethernet – 10/100/1000 Mbps
Controller – 2 * Intel® i211AT Gigabit LAN
Connector – 2 * RJ 45
Audio
CODEC – HD Audio : Realtek ALC662
Channel – 2 Channe
 SATA
Max Data Transfer Rate – 1 * SATAIII (6.0Gb/s)
 Rear I/O
VGA – 1
DVI-D – 0
Display Port – 0
Ethernet – 2
USB – 4 (2 * USB3.0 + 2*USB2.0)
Audio – 0
Serial – 2 (RS-232/422/485 with 5V/12V selectable header)
DC-input – 1
 Internal Connector
USB – 2 ( 2 * USB 2.0 )
PS/2 – 0
LVDS / inverter – 1
eDP – 1
Serial – 2 (2 * RS-232 with 5V/12V selectable header)
SATA – 1 * SATAIII (6.0Gb/s)
Mini PCI-e – 1 (full size)
M.2 – 1 (2242/2260/2280)
GPIO – 4 in / 4 out
Chassis intrusion – 1
Audio Header – 1
SMBUS/ I2C – 1/1
AT mode – 1
Others – Support Expansion card (2*COM+2*USB2.0)
 Watchdog Timer
Output – From Super I/O to drag RESETCON#
Interval – 256 segments, 0,1,2…255sec/min
 Power Requirements
Input PWR – +9~28V DC-in (2-pin PWR Con)
Power On AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Certifications
Certifications – CE, FCC, RoHS, REACH
Environment
Temperature – Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C
Warranty
Warranty – 2 Years Limited Warranty
Data sheet Download (PDF)
Data sheet Print view
