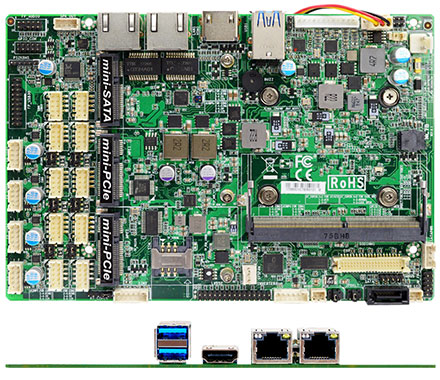

Jetway JNC7B-E6200 (Intel Skylake-U)

Jetway JNC7B-E6200 (Intel Skylake-U)

  • Intel® Skylake-U I5-6200U SOC (CO-LAY I3/I5/I7 Series)
  • Onboard Intel® 6200U 2.3GHz Dual Cores CPU
  • Support 1 * DDR4/2133 SO-DIMM Max 16GB
  • 2 * GbE, 4 * USB3.0, 8 * USB2.0, 10 * COM (COM1/2/3/4/5/6 Support 5V/12V), 2 * SIM Card
  • Support CRT+HDMI+ EDP Display(Co-lay LVDS)
  • Support Power Onboard(12~24V)
  • Form Factor: 120mm x177mm


Share

598.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (mSATA):

Build/Install:
 Model
Model – JNC7B-E6200
Part Number – JNC7B-E6200
 Form Factor
Dimensions – 120 x 177mm
 Processor System
CPU – Intel® Skylake-U I5-6200U
Core Number – 2
Max Speed – Turbo Boost 2.80GHz
L3 Cache – 3MB
Chipset – SoC
BIOS – AMI 128M Flash ROM
 Expansion Slot
Mini-PCIe – 2 (full size)
mSATA – 1
SIM Card Holder – 2
 Memory
Technology – DDR4 2133MHz DRAM
Max. – 16GB
Socket – 1 *SO-DIMM
 Graphics
Controller – Intel® HD Graphics 520
VRAM – Shared Memory
VGA – 1
LVDS – 1(CO-Lay eDP)
eDP 1.3 – 1 (CO-Lay LVDS, Max Resolution: 4096×2304@60Hz)
HDMI 1.4 – 1 (Max Resolution : 4096×2304@24Hz)
MultiDisplay – 3 Displays
 Ethernet
Ethernet – 10/100/1000 Mbps
Controller – 2 * Intel I219LM + i211AT Gigabit LAN
Connector – 2 * RJ 45
 Audio
CODEC – HD Audio : Realtek ALC662
Channel – FP_AUDIO, 3W Amplifier Speaker out
 SATA
Max Data Transfer Rate – 1 * SATAIII (6.0Gb/s)
 Rear I/O
HDMI – 1
Ethernet – 2
USB – 2 * USB 3.0
 Internal Connector
USB – 2 * USB3.0 & 8 * USB 2.0
PS/2 – 1
LVDS / inverter – 1
eDP – 1
VGA – 1
Serial – 10 (COM1/2/3/4/5/6 Support 5V/12V TTL)
SATA – 1 * SATAIII (6.0Gb/s)
mPCIe – 2 (full size)
mSATA – 1
SIM Card – 2
GPIO – 8bit (5V)
Chassis intrusion – 1
Audio Header – 1
SMBUS/ I2C – 1
AT mode – 1
 Watchdog Timer
Output – From Super I/O to drag RESETCON#
Interval – 256 segments (0 ~ 255sec)
 Power Requirements
Input PWR – 12~24V DC-in (2-pin PWR Con)
Power On AT/ATX Supported
– AT : Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
 Certifications
Certifications – CE, FCC, RoHS, REACH
 Environment
Temperature – Operating: 0°C ~ 60°C
– Storage: -20°C ~ 85°C
 Warranty
Warranty – 2 Years Limited Warranty
Data sheet Download (PDF)
Data sheet Print view
