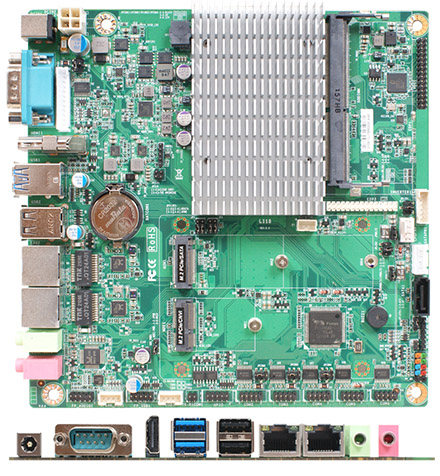

Jetway JLI1S-5L Thin-ITX (Intel J4125 Gemini Lake, 2x LAN, 1x COM, 12V DC-in)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway JLI1S-5L Thin-ITX (Intel J4125 Gemini Lake, 2x LAN, 1x COM, 12V DC-in)
  • J4125 Gemini Lake !
  • 1x COM !
  • Triple Display !
  • MiniITX !

  • Intel® Gemini Lake J4125 2.0GHz Quad Core MCP Processor (10W, Turbo 2.7GHz)
  • 1* DDR4 2400MHz SO-DIMM up to 8GB
  • 2* Realtek® RTL8119I GbE, 1* M.2 E-key support WIFI/BT
  • 1* SATAIII, 1* M.2 M-key
  • 1* HDMI, 1* eDP, 1* LVDS
  • 2* RS232/485, 4* RS232, 2* USB3.0, 5* USB2.0
  • 12V DC-in
  • Thin Mini ITX Form Factor (170 x 170 mm)





Share

RAM :

SSD (M.2 NVME):

OS:

Build/Install:
Model – JLI1S-5L
Form Factor – Mini-ITX (6.7-in * 6.7-in, 170 * 170mm)
Processor System – Intel® Gemini Lake J4125 2.0GHz/QC Core MCP Processor (10W, Turbo 2.7GHz)
– Intel J4125 SoC chipset
– AMI 128Mb Flash ROM BIOS
Expansion Slot – 1* M.2 E-key (2230, support WIFI/BT Module)
Memory – 1* DDR4 2400MHz SDRAM SO-DIMM up to 8GB
Graphics – Intel® 600 series Graphics, shared memory
– 1* HDMI1.4 (Max Resolution : 3840×2160@24Hz, Co-lay VGA)
– 1* LVDS (Max Resolution : 2560×1600@60Hz, Co-lay eDP)
– 1* eDP (Max Resolution : 3840×2160@60Hz)
– Support Triple Displays
Ethernet – 2* Realtek® RTL8119I GbE
Audio – Realtek HD audio
– 3W speaker amplifier
Storage – 1* SATAIII (6Gb/s)
– 1* M.2 M-key (2242/2280, SATA or NVMe PCIex2)
Rear I/O – 1* HDMI
– 1* RS232
– 2* RJ45
– 2* USB3.0
– 2* USB2.0
– Line-out/MIC
– 12V DC-in
Internal Connector – 3* USB2.0
– 2* RS232/485
– 2* RS232
– 1* SATAIII
– 1* SATA power
– 2* M.2 (1* M-key, 1* E-key)
– 8bit GPIO (5V)
– 1* AT mode
– 1* I2C/SMBUS
– 1* FP_Audio
– 1* speaker
– 1* CPU Fan (W/O Smart FAN)
Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)
Power 12V DC-in, AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Compliance – CE, FCC, RoHS, REACH
Temperature – Operating: 0°C ~ 60°C
– Storage: -20°C ~ 70°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support – Windows 10, Linux
