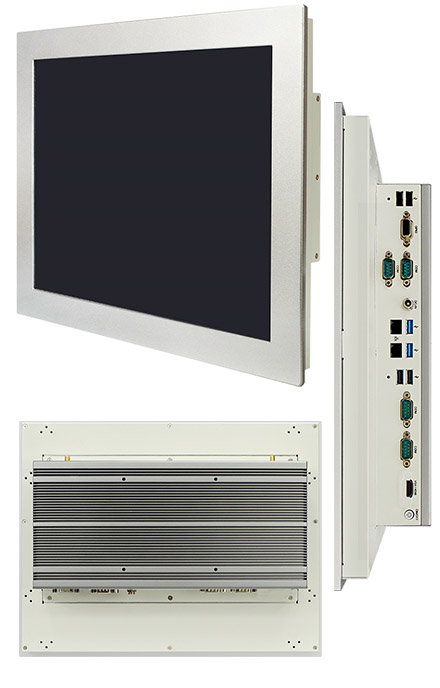

Jetway HPC150GR-HD6412 PanelPC (Intel Elkhart Lake J6412) [15.0" Touch Panel TFT, IP65, 9-28V DC-in]

Jetway HPC150GR-HD6412 PanelPC (Intel Elkhart Lake J6412) [15.0" Touch Panel TFT, <b>IP65, 9-28V DC-in</b>]
  • Intel J6412 !
  • IP65 !
  • 9-28V DC !

  • 1. 15.0″ 350 nits high brightness TFT LCD with LED backlight
  • 5 Wire Resistive Touch/Anti-Reflection Protection Glass
  • Cable less, Streamlined enclosure for highly efficient heat dissipation Enclosed in robust aluminum casings
  • Strong solid aluminum frame design and Fanless cooling system
  • Support Open frameless design
  • Design for easy Wall mount, Panel Mount, VESA Mount installation
  • A true Flat, easy-to-clean front surface with edge-to-edge design
  • USB2.0 Support Lock Device
  • Front IP65 for protection against water and dust
  • 9-28V DC-input Support, with EOS, OVP design
  • Support TPM2.0 (HPC150GR-H [more]

    Share

929.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks
Add to cart
RAM :

SSD (M.2 NVME):

SSD (2.5"):

OS:

Build/Install:

  • 1. 15.0″ 350 nits high brightness TFT LCD with LED backlight
  • 5 Wire Resistive Touch/Anti-Reflection Protection Glass
  • Cable less, Streamlined enclosure for highly efficient heat dissipation Enclosed in robust aluminum casings
  • Strong solid aluminum frame design and Fanless cooling system
  • Support Open frameless design
  • Design for easy Wall mount, Panel Mount, VESA Mount installation
  • A true Flat, easy-to-clean front surface with edge-to-edge design
  • USB2.0 Support Lock Device
  • Front IP65 for protection against water and dust
  • 9-28V DC-input Support, with EOS, OVP design
  • Support TPM2.0 (HPC150GR-HD6412T2 only)
  • VESA Support 100x100mm


Model – HPC150GR-HD6412
Main System – Intel® Elkhart Lake J6412 2.0GHz/QC processor
– DDR4-3200MHz SO-DIMM up to 32GB
– 128MB SPI Flash ROM BIOS
– 2* 3W/8Ω speaker
– Watchdog Timer 256 levels, 0~255 sec.
– OS Support Windows 10/ 11 / Linux (Option)
Display – IP65, NEMA 4 rugged protection, metal front bezel
– 15.0″ With LED Backlight
– 350nits Brightness (cd/m²)
– 262K display color
– 1024 x 768 @ 60Hz
– 170°/160° viewing angle (H/V)
– 0.297 x 0.297mm pixel pitch
– 4:3 aspect ratio
– 700:1 contrast ratio
– 5.7ms response time
Touch Screen – 5 wires analog resistive type
– 304.10 x 228.10mm ±0.2mm
– Operating Force ≦ 80g
– Transparency 80 ±3%
– Surface Hardness ≧ 3H (ASTM D3363, pressure 750g/45°)
– 10,000,000 times keystrokes
I/O Connector – 2* USB3.2 (Gen1)
– 4* USB2.0
– 2* RS232/422/485
– 2* RS232
– 1* HDMI2.0 (Max Resolution: 3840 x 2160@60Hz)
– 1* 8bit GPIO
– 2* Intel® i225-V 2.5GbE
– 1* Locking Jack 9~28V DC input
– 1* Power button
Storage – 1* 2.5” SATA bay
– 1* M.2 M key (2242/2280, SATA/NVMe)
Expansion – 1* M.2 E-key (2230 for WIFI/BT Module)
– 1* M.2 B-key (3042/3052 for 4G/5G Module)
Case – Aluminum panel
– Iron case
– Silver + White color
– Spray paint coating requirement
Power – AC version: 100~240V AC-DC 60W power adapter or
– DC version: 12VDC with over current protection fuse
– Consumption: 39.5W
Compliance – CE, FCC, IP65 (Front)
Safety – Shock: 15G, 11ms duration
– Vibration: 5~500Hz/1 Grms
Dimensions – 366 x 290 x 74mm
Temperature – Operating: 0°C ~ 60°C (with W.T. DRAM/HDD in airflow condition)
– Operating: 0°C ~ 60°C (with W.T. DRAM/HDD)
– Storage: -20°C ~70°C
Data sheet Download (PDF)
